P09 Triple-Sided Ticket Storage Machine
Innovative structure prevents jamming.
Easy disassembly and assembly of the shredding mechanism for easy maintenance.
Precision-forged cutting blades for extended lifespan.
- Overview
- Recommended Products
Model: |
P09 (3-Sided) |
Applications: |
Arcades, Amusement Parks, Children's Play Centers |
Ticket Capacity: |
20,030 tickets |
Motor: -- |
|
Voltage: |
110-240V |
Power Consumption: |
Operating - 345W, Idle - 195W |
Screen: |
21.5-inch Touchscreen |
Bill Acceptance: |
Supported (Optional) |
Card Dispenser: |
Supported |
Code Scanning: |
Supported |
Communication: |
Ethernet, Wi-Fi, 4G (Optional) |

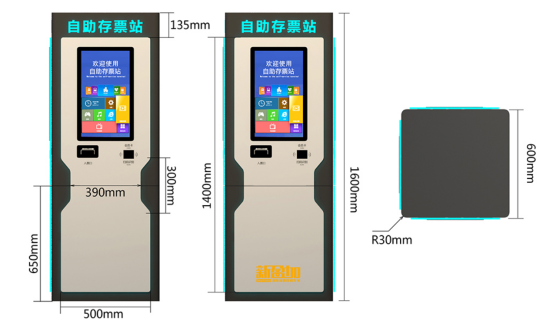

Product Dimensions: |
600 (W) x 1600 (H) x 600 (D) mm |
Packaging Dimensions: |
650 (W) x 1760 (H) x 650 (D) mm |
Wooden Case Dimensions: |
740 (W) x 1820 (H) x 700 (D) mm |
Certifications: |
CE, Patent Certification |
Power Connector: |
CN/ US / EU / UK / IT Standards |
Three ticket bins working simultaneously.
Automatic fault alarm alerts on-site staff for handling.
21.5-inch touchscreen for touch operation.
Supports IC cards, mobile members, and non-members.
Cross-cut ticket shredding ensures thorough destruction, eliminating frequent ticket bin replacement.
Ticket Storage Speed: Full tickets - 1500 tickets/min, Half tickets - 3000 tickets/min.
Maximum Ticket Hopper Capacity: 200,000 tickets.
Supports WeChat QR code scanning (front & back), membership cards, etc.
Lottery Ticket Ranking
User Interface (UI) |
Customizable UI supporting multiple languages. |
System Integration |
Software developers with system R&D capabilities. |
